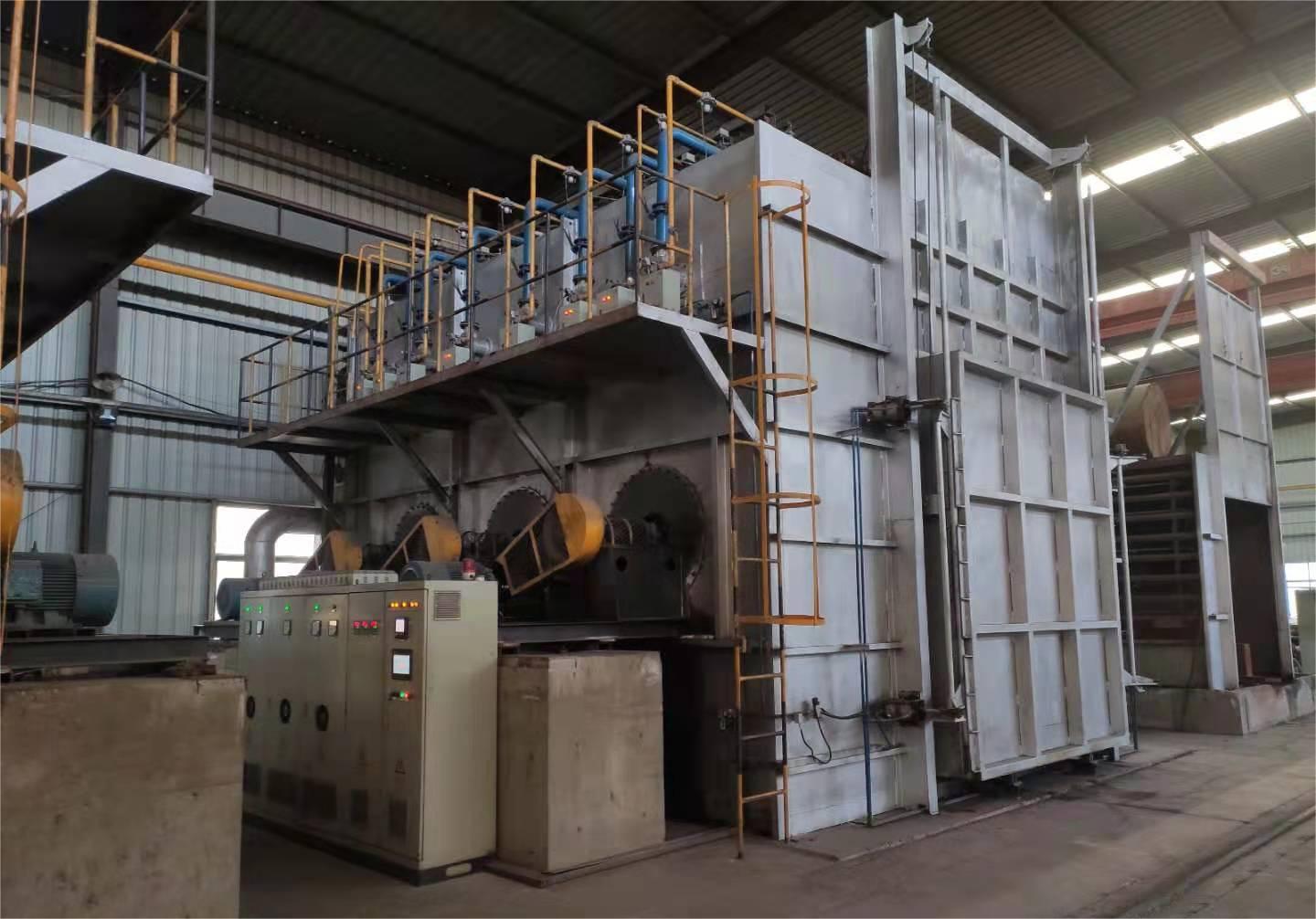

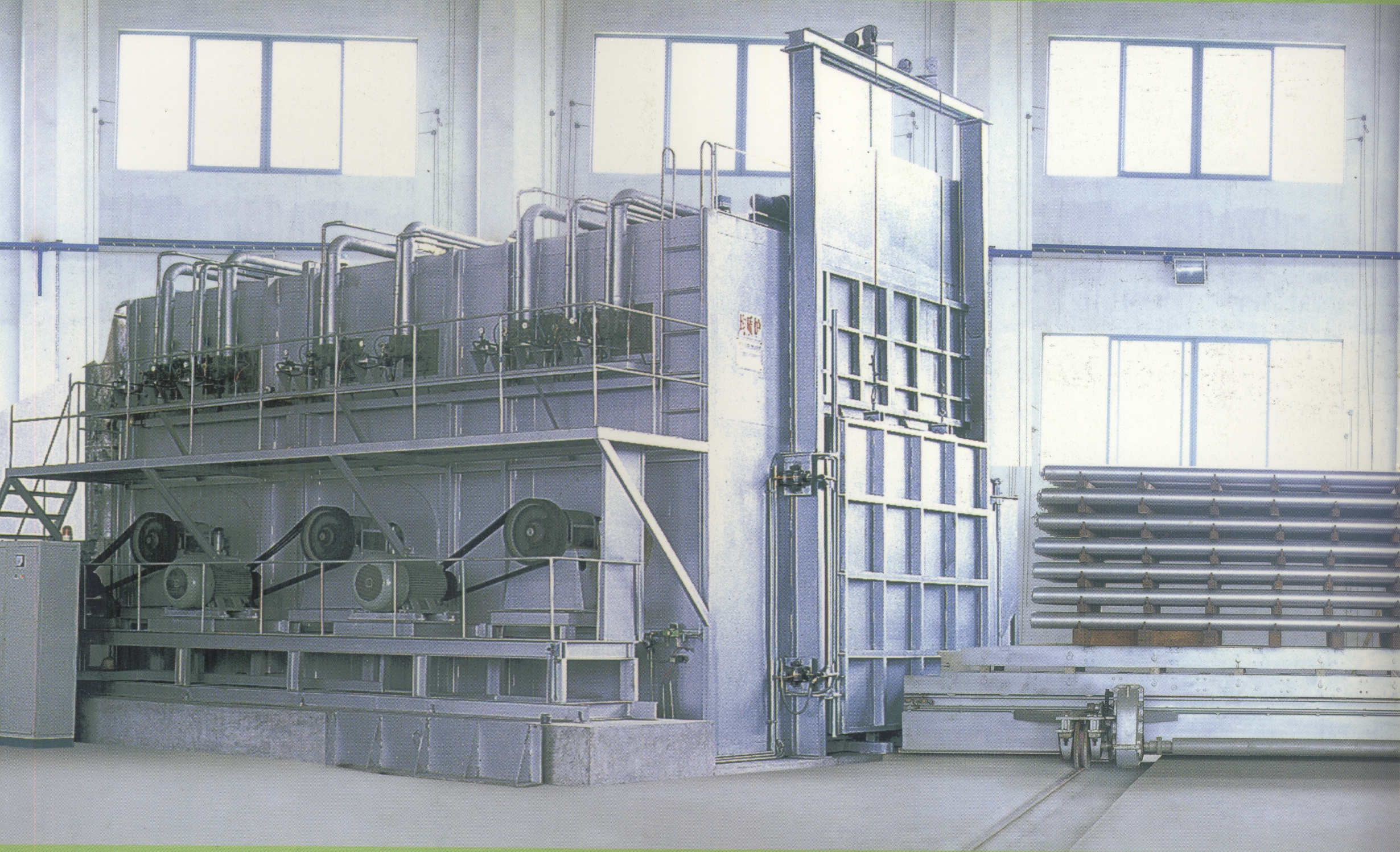

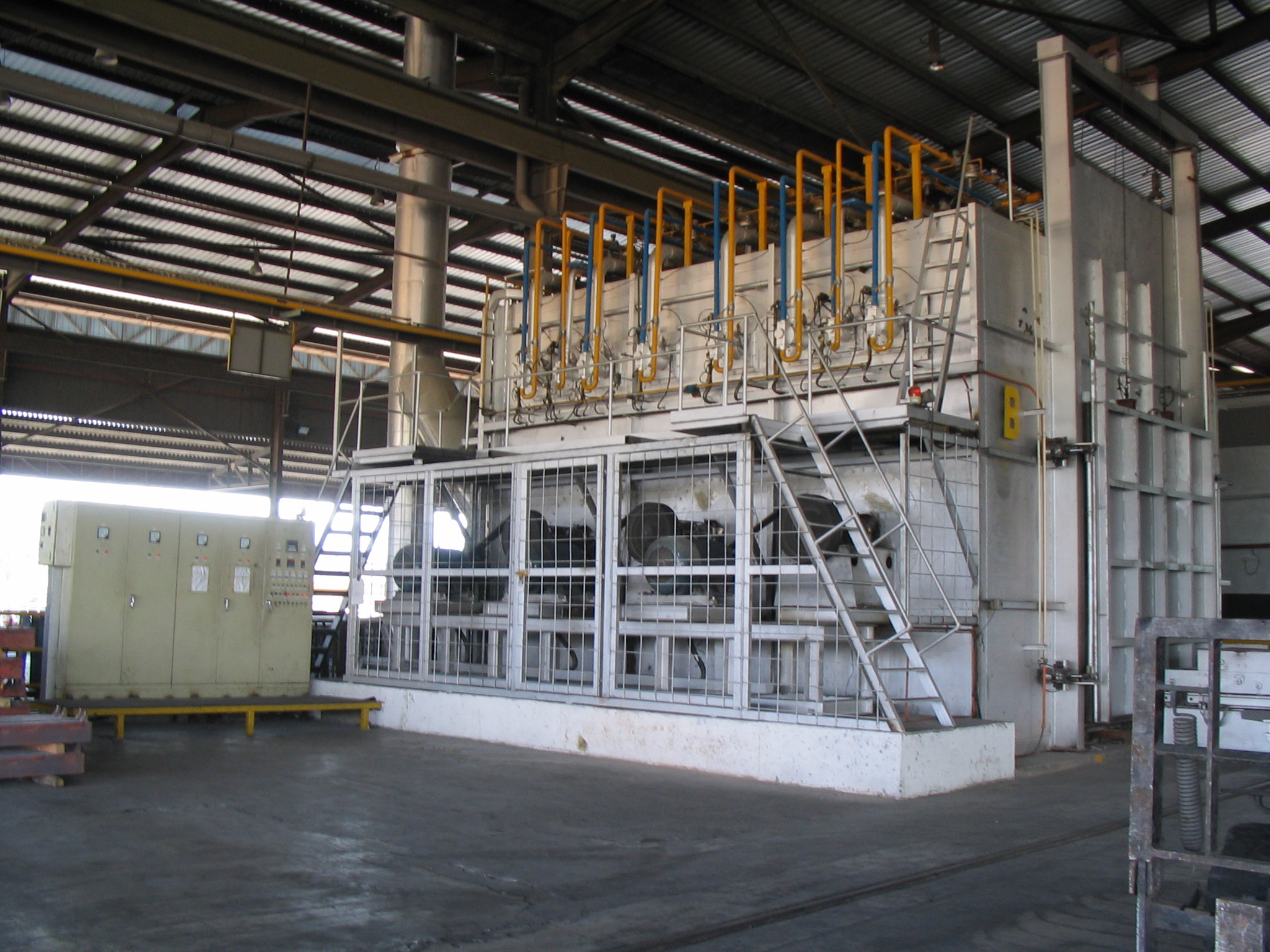

The technical parameters of the 25 tons homogenizing furnace as below.

Rated Capacity (t)25 tEnergy Consumption 20-28 m3/t·Al
Productive≤75 t/dEnergy8600kcal/ N·m3
Temperature on Up Time 520-590℃ (968℉-1094℉) Up to Homogenizing Temperature 4-6h
Regenerative Nozzles6 PiecesFuelNatural Gas
Fan Power135 KWControl MethodAutomatic

The technical parameters of the 25 tons cooling chamber as below.

Rated Capacity(t)25 tFan Motor Quantity2 pieces
Power of Fan Motor65 kwEach Fan Motor Air≥20m3/sec
Time of Coolingabout 2 hSpeed Rate of Cooling≥300℃/hour

The technical parameters of the feeding car as below.

Load Capacity(t)≥35 tTotal Length8050 mm
Aluminum Billet LengthMax 6500mmMoving Distance>7500 mm
Power of the CarHydraulicLifting Height70 mm
Speed of the Carabout 7.5 m/minPower220 v 50Hz
